Getting started¶
Installation¶
pip install meta-tools-clingo
git clone https://github.com/potassco/meta_tools.git/
cd meta_tools
pip install -e .[all]
Warning
Use only for development purposes
Usage¶
Command line interface¶
Details about the command line usage can be found with:
reify -h
This command will show the available options and extensions.
The output of the reification will be printed to standard output. To save it to a file, use output redirection:
reify input.lp > reified_output.lp
By default, both the TagExtension and ShowExtension are enabled.
Example
Consider the example in examples/test
% @domain :: a(X)
{a(1)}.
% @myrule
b(X):-a(X).
#show b/1.
Using the command line one can reify the program with:
> reify examples/test/encoding.lp --clean > reified_output.lp
symbol_literal(a(1),3).
symbol_literal(b(1),6).
show_hide.
show(b(1),3).
tag(rule(choice(1),normal(1)),rule_fo("{ a(1) }.")).
tag(rule(disjunction(2),normal(2)),myrule).
tag(rule(disjunction(2),normal(2)),rule_fo("b(X) :- a(X).")).
tag(atom(3),domain).
rule(disjunction(0),normal(0)).
rule(choice(1),normal(1)).
rule(disjunction(2),normal(2)).
literal_tuple(2,3).
literal_tuple(3,6).
literal_tuple(5,3).
literal_tuple(7,1).
literal_tuple(0).
literal_tuple(1).
literal_tuple(2).
literal_tuple(3).
literal_tuple(5).
literal_tuple(7).
atom_tuple(0,1).
atom_tuple(1,3).
atom_tuple(2,6).
atom_tuple(0).
atom_tuple(1).
atom_tuple(2).
atom_tuple(4).
Debugging¶
To help debugging we provide a --log option as well as --save-out to inspect the transformed program before reification and the full reified outout before cleaning.

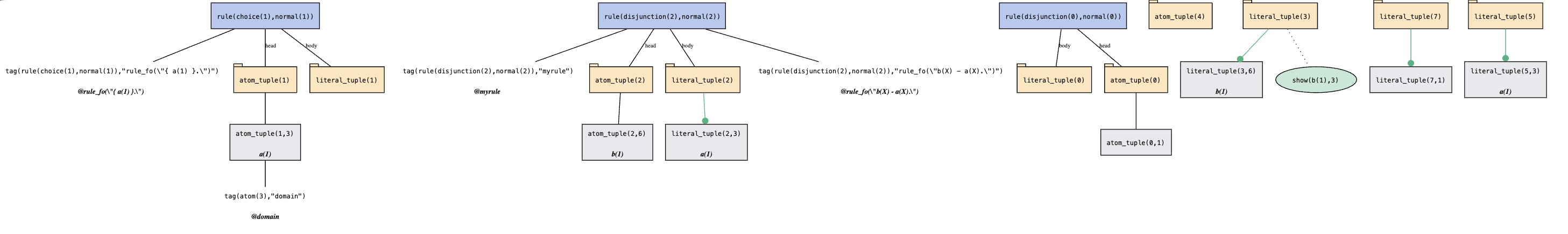

Visualization¶
To visualize the reified output we provide a clingraph integration
This option can be added with --view, which will open a browser with the visualization.
Example
> reify examples/test/encoding.lp --clean --view
Mimic normal reification¶
To obtain the normal clingo reification one can use the tag --classic
