COOM Suite

The COOM language is a domain-specific language for modelling product configuration problems. While currently geared towards ASP, the COOM Suite is intended to serve as a general workbench for experimentation with industrial-scale product configuration problems. It includes a (customizable) ANTLR v4 parser to convert COOM specifications into facts, and currently contains two ASP encodings for solving: one for clingo and one for hybrid solver fclingo.

In addition, a user interface, a range of examples and a benchmark collection with four scalable benchmark sets is provided.

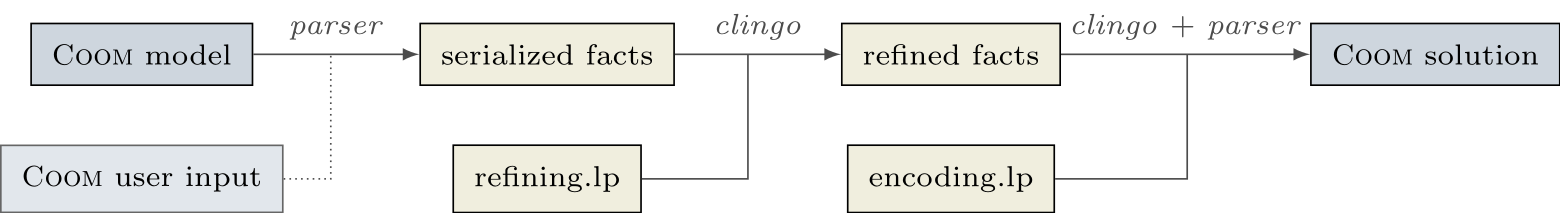

The workflow of the COOM Suite is as follows:

  1. First, the COOM input gets parsed and translated into a fact format which closely resembles the COOM language
  2. Next, these facts get refined by means of an ASP encoding into another, COOM-independent fact format
  3. This serves as input to another encoding solving the configuration problem
  4. The stable models can be parsed back into a COOM solution

Workflow

As an example consider the following simple COOM model:

product { //(1)!
    Bool    wheelSupport
    Wheel   frontWheel
    Wheel   rearWheel
}

enumeration Wheel { //(2)!
    attribute num size //(3)!

    W14 = (  14 ) //(4)!
    W16 = (  16 )
    W18 = (  18 )
    W20 = (  20 )
}


behavior { //(5)!
    combinations  (wheelSupport  rearWheel)
    allow         (True          (W14, W16)) //(6)!
    allow         (False         (W18, W20))
}

behavior {
    require frontWheel.size = rearWheel.size //(7)!
}
  1. Product to be configured
  2. Enumerations provide a discrete number of options
  3. Additional attribute values can be defined for each option
  4. The option W14 has size 14
  5. The behavior keyword defines constraints
  6. A wheelSupport can be used only with rear wheels W14 and W16
  7. The size of the front and rear wheel have to be equal

To solve the COOM model, run

coomsuite solve simple.coom -n0 --output coom

clingo arguments

The usual clingo command-line arguments can be used, for instance, -n0 above to calculate all stable models.

COOM output

By default the COOM suite outputs the stable models. To get the COOM output add the option --output coom (or -o for short).

This gives the following output

COOM Suite version 0.1
Reading from /tmp/tmpdz0jgc5o
Solving...
Answer: 1
frontWheel[0] = "W18"
frontWheel[0].size[0] = 18
rearWheel[0] = "W18"
rearWheel[0].size[0] = 18
wheelSupport[0] = "False"
Answer: 2
frontWheel[0] = "W16"
frontWheel[0].size[0] = 16
rearWheel[0] = "W16"
rearWheel[0].size[0] = 16
wheelSupport[0] = "True"
Answer: 3
frontWheel[0] = "W20"
frontWheel[0].size[0] = 20
rearWheel[0] = "W20"
rearWheel[0].size[0] = 20
wheelSupport[0] = "False"
Answer: 4
frontWheel[0] = "W14"
frontWheel[0].size[0] = 14
rearWheel[0] = "W14"
rearWheel[0].size[0] = 14
wheelSupport[0] = "True"
SATISFIABLE

Models       : 4
Calls        : 1
Time         : 0.006s (Solving: 0.00s 1st Model: 0.00s Unsat: 0.00s)
CPU Time     : 0.006s

Info

The COOM suite is part of the Potassco suite (which is the home of clingo and other ASP tools)

If you want to cite the COOM Suite, please use the following reference. Check out our paper here.

J. Baumeister, S. Hahn, K. Herud, M. Ostrowski, J. Reutelshöfer, N. Rühling, T. Schaub, P. Wanko. Towards Industrial-scale Product Configuration. CoRR, abs/2504.00013, 2025. doi: 10.48550/arXiv.2504.00013. URL https://arxiv.org/abs/2504.00013.
